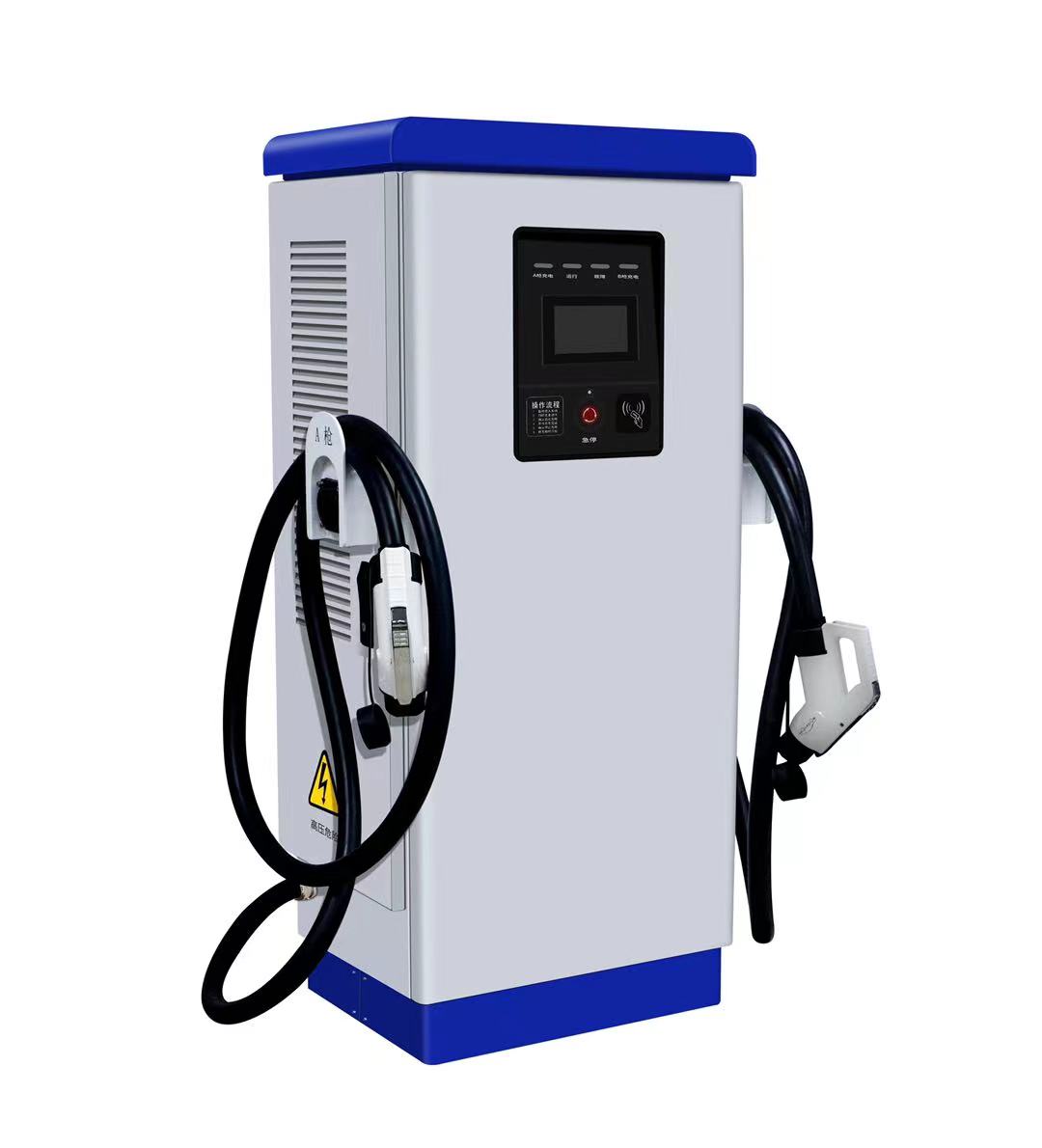

China manufacturer AL-180 CCS1/CCS2 180KW DC fast EV Charger

AL-180

DC fast charger is specially designed for high protection and high reliability applications with CCS /CHAdeMO /GBT/global

standard EV charging. High integrated design and IP55 protection standard for harsh environment applications.Max power upto 180kW

and max current upto 300A , and compatible with the voltage from 150V to 1000V.


0.00
0.00

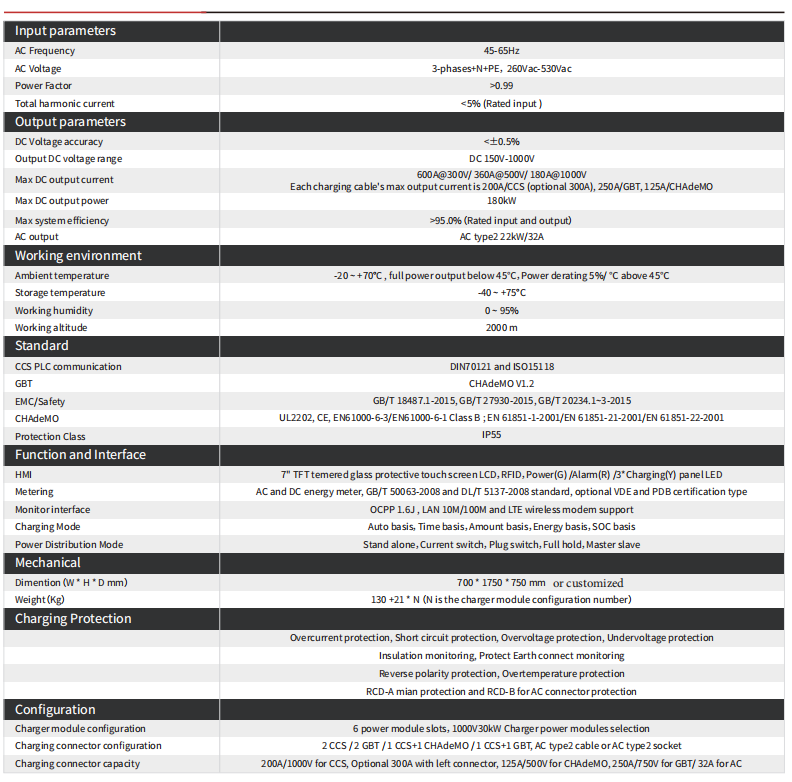

Product Description

AL-180

DC fast charger is specially designed for high protection and high reliability applications with CCS /CHAdeMO /GBT/global

standard EV charging. High integrated design and IP55 protection standard for harsh environment applications.Max power upto 180kW

and max current upto 300A , and compatible with the voltage from 150V to 1000V.



CC 1 or CCS2 , CHAdeMO and GBT support , IP55 design with high protection and high reliability for harsh environment

OCPP 1.6 J support
Optional CoolRingTM function realize the power transfer between the two chargers which can get max
360kW in one charger Power can also transfer between the two DC connectors, and also can output at the same time for the
two DC connectors Max output power upto 180kW and max current upto 300A, and compatible with the voltage from 150Vto
1000V
Full safety function with output contactor and fuse,EPO,SPD,RCD, leakage switch,insulation detector protection
User friendly interface with tempered glass protective 7" TFT capacitive touch screen LCD
Multiple charging modes: Auto basis,Time basis,Amount basis,Energy basis,SOC basis
Multiple power distribution modes: Stand alone,Current switch,Plug switch,Full hold,Master slave
Internal high precision AC energy meter and DC energy meter, optional VDE and PTB certicifification type
LAN and optional LTE wireless support, RFID authorization and Mobile App payment support
