Dust free drag chain, also known as dust-free drag chain, dust-free cable component, dust-free cable drag chain, etc., is a general term for transmission components used in clean rooms to undertake electrical connection equipment and loads, with wear resistance, non gas release, non dust accumulation, acid and alkali resistance, and aging resistance

The dust-free cable assembly adopts a flat structure, greatly reducing the installation height of the drag chain and improving the service life of the internal cables and other components of the drag chain.

Pod is made of polymer PU and e-PTFE composite, which has the characteristics of high-definition self-cleaning, anti bending, and anti fatigue;

 The support chain adopts modified PA, with precise angles and a sturdy structure;

 The built-in filling components include high flexibility cables and air tubes. The high flexibility cables are wrapped in a combination of e-PTFE and shielded wire to improve the stability of signal transmission.

Function configuration:

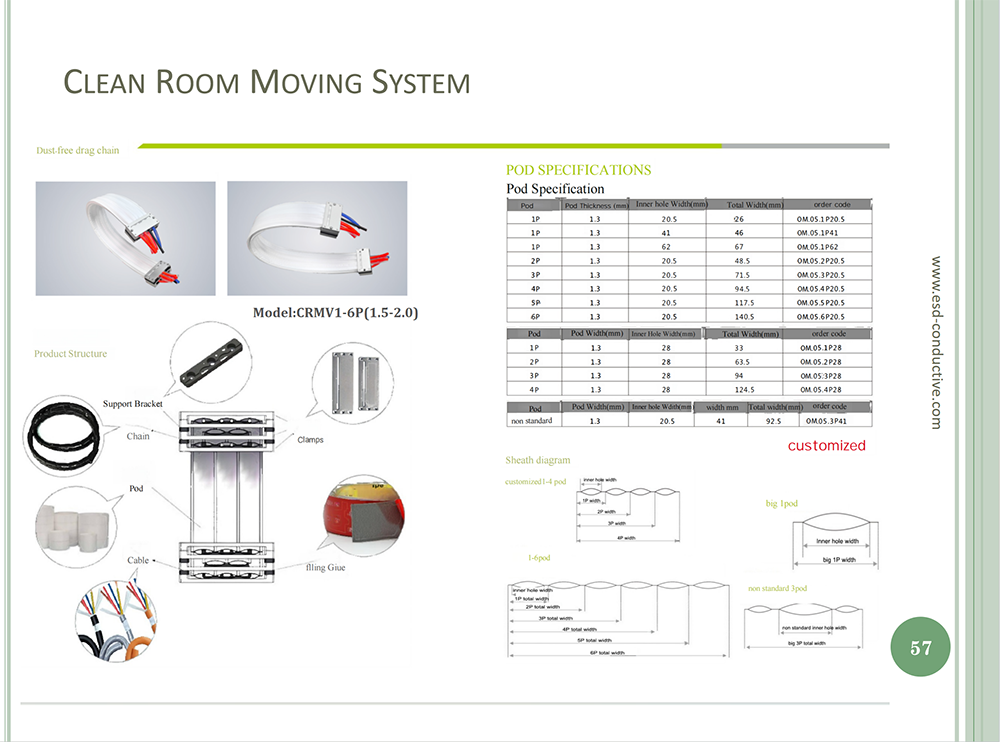

The dust-free cable assembly consists of an external clean POD, high flexibility wiring harness, air tube, support chain, and fixed fixture

Product features:

1. Reduce weight

The flat multi POD structure of the dust-free cable assembly allows the cable drag chain to pass four cables side by side through the POD, reducing the overall occupied area;

 The POD sheath structure uses lightweight e-PTFE composite material, with a thickness of 1/2 to 1/3 of most circular cable sheaths and 1/10 of traditional nylon drag chain structures, and complies with UL's safety and fire protection regulations;

 PA load-bearing bracket enhances the bending stability and service life of dust-free drag chain high flexibility cable components.

 Dust free cable components can increase positioning accuracy, improve speed, make movement quieter, install reliably, and work cleaner.

2. Reduce dust collection

Obtained ISO Level 1 certification, dust-free cable components are suitable for clean rooms and vacuum environments that require minimal dust collection. The cable has a dust collection probability of less than 0.1%, and this type of cable maintains low dust collection even when the cable system is repeatedly bent. Due to the chemical inertness of the insulation material, it will not release gas.

3. Improve bending life

The dust-free cable assembly has a good effect on enhancing the bending life of cables and ensuring the integrity of signals. The dust-free drag chain high flexibility cable assembly provides a simple cable management system and maintains good performance even under conditions where other cables are prone to failure.

 Under a bending radius of 50mm, the bending life can reach over 30 million bending cycles. This type of cable is easy to install, improves reliability, and reduces downtime.

The dust-free cable components are specially designed to be more durable and long-lasting in harsh environments.

 Having the following characteristics:

Self supporting flat structure, no need for distributors and brackets;

At a minimum bending radius of 50mm, the bending life can reach over 30 million bending cycles;

Low friction, chemically inert, and dust-free insulation material;

Obtained ISO Level 1 cleanroom and vacuum environment certification;

Can be configured with standard and customized specifications, with installation cable clamps.

4. Anti static

The dust-free cable components can achieve anti-static effect through special treatment, and the anti-static value can reach 10 ^ 6.

Application field:

It has been widely used in fields with high dust-free requirements such as semiconductors and microelectronics, display panels and mobile electronics, photovoltaics and new energy, medical and pharmaceutical industries, in accordance with the rules for the use of semiconductor devices and the SJ/T 10147-91 anti-static packaging tube for integrated circuits.

The dust-free cable components are specially designed, including:

Transmission of cables in machine vision systems (cameras);

Control network, high-speed data connection, digital video camera;

Display interconnection, high-speed image scanning/processing;

Servo control and pneumatic unit connection.
