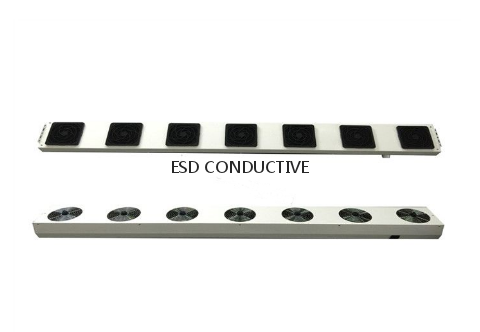

E-7000 7-fan Overhead Ionizing Air blower Static Eliminator ESD Ionizer/Ioniser

E-7000 7-fan Overhead Ionizing Air blower Static Eliminator ESD Ionizer/Ioniser

7 Fans Ion blower E-7000 can generate a large positive and negative electric current, which can neutralize the static on the object . When the surface charge is negative, it will attract the positive charge in the air flow. When the charge on the surface is positive, it will attract the negative charge in the air flow so that the static electricity on the object surface will be neutralized , realizing the elimination of static electricity.E-7000 ion fan has 7 small fans to provide wind, the wind speed switch can be adjusted in a large range.

0.00
0.00

Product Description

7 Fans Ion blower E-7000 can generate a large positive and negative electric current, which can neutralize the static on the object . When the surface charge is negative, it will attract the positive charge in the air flow. When the charge on the surface is positive, it will attract the negative charge in the air flow so that the static electricity on the object surface will be neutralized , realizing the elimination of static electricity.E-7000 ion fan has 7 small fans to provide wind, the wind speed switch can be adjusted in a large range.

E-7000 is honored product of ESD conductive factory, it is to provide targeted coverage for electrostatic problems
Features
1. Neutralize static electricity quickly.
2. Ion airflow covers a large area.
3. Wide range of adjustable air flow
4. There is a special ion emitter cleaner.
5. Ionization indicator.
6. Fan has a good grounding protection.

Specification

Input voltage

220VAC/ 50 Hz or 110VAC / 60Hz

Input current

Max.1.3Amp (fan high)  Min.0.65Amp (fan low )

Air volume output

Fan speed Flow: Low 200 CFM/ High 410 CFM

Working temperature

32ºF(0℃)～122ºF(50℃)

Enclosure

Stainless Steel

Ozone volume

0.03PPM (wind speed adjusted to the minimum 6 inches before the fan measured)

Noise

min 79dB   max 120dB

Size

1000mm(L)×170mm(W)×125mm(H)

Optional Air Filter

30PPl Open Polyurethane Foam

Ion Balance

≦∣±10V∣

Testing condition :1KV~100V Temperature:22℃ RH:≤60%

Heating

Y

N

Distance

300MM

300MM

Decay time

Positive

1.1s

1.0s

Negative

1.2s

1.1s

Offset Voltage

0V±10V

0V±10V

Power

120W
